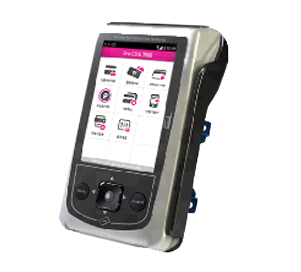

ONECLICK 3500


The Most Advanced and Innovated ETF-POS
ONECLICK 3500T provides many advantages for companies who need solutions for payment & value-added services - including credit, debit, smart cards, prepaid, lottery, gift & proprietary cards. The terminal suits markets like delivery, conventions, stadium, insurance, transportation services, after services, traveling sales, outdoor sales & services, and taxi payment application especially.
SPECIFICATION

Processor & Operating System Smart Card
Microprocessor Cortex-ARM 32Bit RISC CPU ISO7816,T=0,T=1,EMV LEVEL1
Operation system RTOS PSAM
Memory ISO7816,T=0,T=1, SAM Socket: Int 1EA / Ext 2EA
Flash Memory 8MByte Nor-Flash Peripheral Port
RAM 768KByte SRAM RS-232 port support: 3EA
Display USB 2.0 HOST
480x320Pixel, TFT COLOR LCD Wireless Modem (Option)
LCD Back Light CDMA,GSM/GPRS,3G & LTE
Touch Panel Dimensions
Touch Screen 4wire glare Type 79mm(W) X 144mm(L) X48mm(H)
Magnetic Card Reader Power
Magnetic stripe ISO7811,Track II,High Coercivity,Bi-Directional. Input : DC 12V~24V Power Input
Printer Environmental
Thermal graphical printe,Max 384, 58mm wide paper Operating Temperature : -20°~ 80
Improved easy open & easy load mechanism Storage Temperature :-30°~90°
NFC Humidity : 5% to 95%
NFCIP-1 (ISO/IEC 18092),NFCIP-2 (ISO/IEC 21481)ISO15693, Audio
ISO18000-3, ISO14443A/B, and FeliCa 1 watt mono audio Speaker

Competitive Features

  • 1 years Warranty (The warranty period can be also extended more by a separate agreement.)
  • Long term life time support up to 5 years
  • Long term experiences and know-how accumulated in the fields since 2007.
  • Various options: Built-in wireless such as GSM/GPRS/3G/LTE, Bluetooth, Wi-Fi, NFC, RFID and others and extended serial/digital inputs and outputs, etc.
  • ONECLICK SDK: Provides developers with a convenient and effective way to incorporate credit cards into their solutions.
  • Customization or OEM/ODM is available
