Counter Top POS

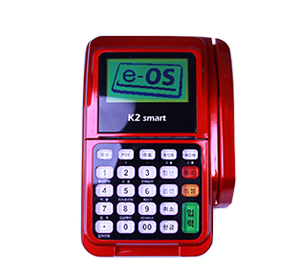

ONECLICK K2 Smart
The Most Advanced and Innovated Counter-top ETF-POS
|
ONECLICK K2 Smart provides many advantages for companies who need solutions for payment & value-added services - including credit, debit, smart cards, prepaid, lottery, gift & proprietary cards.
The terminal suits markets like delivery, conventions, stadium, insurance, transportation services, after services, traveling sales, outdoor sales & services.
|
|
SPECIFICATION
|
Processor & Operating System
|
|
Smart Card
|
|
Microprocessor
|
Cortex-ARM 32Bit RISC CPU
|
|
ISO7816,T=0,T=1,EMV LEVEL1
|
|
Operation system
|
RTOS
|
|
PSAM
|
|
Memory
|
|
|
|
Flash Memory
|
2MByte Nor-Flash
|
|
Peripheral Port
|
|
RAM
|
512KByte SRAM
|
|
Serial Port : 3EA (for Sign Pad, Cash register and POS)
|
|
Display
|
|
|
|
128x64 Gray STN LCD,
|
|
Wireless Modem (Option)
|
|
Yellow Green Backlight
|
|
Built in CDMA module; GSM/GPRS,3G,LTE available(Optional)
|
|
Touch Panel
|
|
Dimensions
|
|
|
|
|
|
Magnetic Card Reader
|
|
Power
|
|
Magnetic stripe ISO7811,Track II
|
|
4V 2.5A SMPS external power adaptor
|
|
Printer
|
|
Environmental
|
|
3’ 576 Dot/LINE Thermal Printer with Auto Cutter
|
|
Operating Temperature : -20°~ 80
|
|
|
|
Storage Temperature :-30°~90°
|
|
LAN
|
|
Humidity : 5% to 95%
|
|
10/100M Ethernet
|
|
Audio
|
|
|
|
|
Competitive Features
-
1 years Warranty (The warranty period can be also extended more by a separate agreement.)
-
Long term life time support up to 5 years
-
Long term experiences and know-how accumulated in the fields since 2007.
-
Various options: Built-in wireless such as GSM/GPRS/3G/LTE, Bluetooth, Wi-Fi, NFC, RFID and others and extended serial/digital inputs and outputs, etc.
-
ONECLICK SDK: Provides developers with a convenient and effective way to incorporate credit cards into their solutions.
-
Customization or OEM/ODM is available
|
