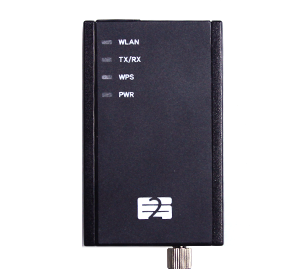

ONECLICK W100
The Most Advanced and Innovated Wi-Fi Terminal
|
W100 provides many advantages for companies who need solutions to need
serial to Wi-Fi gateway for machine to machine (M2M) applications such as
AMR, Automotive, Security, Vending, Industrial, Automation, etc.
W100 provide many functions for Multi AP Router as well.
|
|
SPECIFICATION
|
Standard
|
|
Wireless LAN
|
|
IEEE 802.11 b/g/n standards compliant
|
|
1T1R Mode
|
|

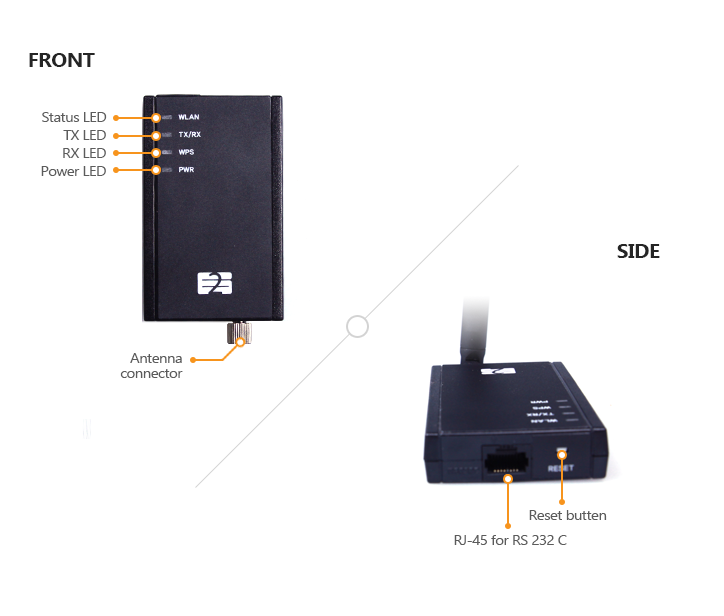

Antenna
|
|
Interface
|
|
SMA Connector
|
|
USB*1 ( Host ) / UART*1 (RJ-45 connector) / Power : 5 ~ 18V
|
|
Frequency Range
|
|
Number of Selectable Channels
|
|
2.400 ~ 2.4835GHz ( subject to local regulations
|
|
802.11n 20MHz/40MHz / 802.11b/g
USA, Canada (FCC):11 channels (2.412GHz~2.462GHz)
Europe (CE): 13 channels (2.412GHz~2.472GHz)
Japan (TELEC): 14 channels (2.412GHz~2.4835GHz)
|
|
Data Rate
|
|
Coverage Area
|
802.11n: up to 150Mbps / 802.11b: 1, 2, 5,5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbp
|
|
Up to 3 times faster than existing 802.11 b/g products
|
|
Transmit Power(EIRP)
|
|
Receiver Sensitivity
|
11n HT40 MCS7 : +13 dBm / 11g OFDM: +15 dBm
/ 11b CCK: +18 dBm
|
|
-66dBm at HT40 MCS7
-73dBm at 54Mpbs
-86dBm at 11Mpbs
|
|
Dimension
|
|
Certifications
|
|
58x93.5x17.5mm
|
|
KC Certification and FCC/CE by request
|
|
Peripheral Port
|
|
Power Consumption
|
|
Serial Port : 1EA (Baud Rate : 9600pbs)
|
|
Peak Current 480mA
Normal Current 380mA
Stand By Current 280mA
|
Competitive Features
-
1 years Warranty (The warranty period can be also extended more by a separate agreement.)
-
Long term life time support up to 5 years
-
Long term experiences and know-how accumulated in the fields since 2007.
-
Various options: Built-in wireless such as GSM/GPRS/3G/LTE, Bluetooth, Wi-Fi, NFC, RFID and others and extended serial/digital inputs and outputs, etc.
-
ONECLICK SDK: Provides developers with a convenient and effective way to incorporate credit cards into their solutions.
-
Customization or OEM/ODM is available
|
