Wireless EFT POS

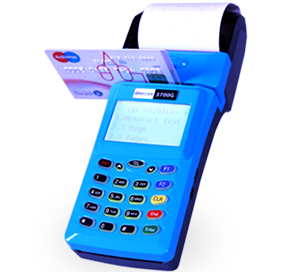

ONECLICK 3700
The Most Advanced and Innovated Mobile ETF-POS
|
ONECLICK 3700 provides many advantages for companies who need solutions for payment & value-added services - including credit, debit, smart cards, prepaid, lottery, gift & proprietary cards.
The terminal suits markets like delivery, conventions, stadium, insurance, transportation services, after services, traveling sales, outdoor sales & services, taxi and Branchless banking.
ONCLICK 3700 is being used for Branchless banking solution with many banks in Indonesia.
|
|
SPECIFICATION
|
Processor & Operating System
|
|
Smart Card
|
|
Microprocessor
|
Cortex-ARM 32Bit RISC CPU
|
|
ISO7816,T=0,T=1,EMV LEVEL1
|
|
Operation system
|
RTOS
|
|
PSAM
|
|
Memory
|
|
|
|
Flash Memory
|
8MByte Nor-Flash
|
|
Peripheral Port
|
|
RAM
|
512KByte SRAM
|
|
RS-232 port support: 3EA
|
|
Display
|
|
USB 2.0 HOST
|
|
50mm X 31.5mm FSTN LCD (128 X 64 Pixel)
|
|
Wireless Modem (Option)
|
|
LCD Back Light
|
|
CDMA,GSM/GPRS,3G & LTE
|
|
Touch Panel
|
|
Dimensions
|
|
Touch Screen 4wire glare Type
|
|
79mm(W) X 144mm(L) X48mm(H)
|
|
Magnetic Card Reader
|
|
Power
|
|
Magnetic stripe ISO7811,Track II,High Coercivity,Bi-Directional.
|
|
|
|
Printer
|
|
Environmental
|
Thermal graphical printer,Max 384, max 384 Dot/Line 58mm wide
paper
|
|
Operating Temperature : -20°~ 80
|
|
Improved easy open & easy load mechanism
|
|
Storage Temperature :-30°~90°
|
|
NFC
|
|
Humidity : 5% to 95%
|
|
|
|
Audio
|
|
|
|
|
Competitive Features
-
1 years Warranty (The warranty period can be also extended more by a separate agreement.)
-
Long term life time support up to 5 years
-
Long term experiences and know-how accumulated in the fields since 2007.
-
Various options: Built-in wireless such as GSM/GPRS/3G/LTE, Bluetooth, Wi-Fi, NFC, RFID and others and extended serial/digital inputs and outputs, etc.
-
ONECLICK SDK: Provides developers with a convenient and effective way to incorporate credit cards into their solutions.
-
Customization or OEM/ODM is available
|
